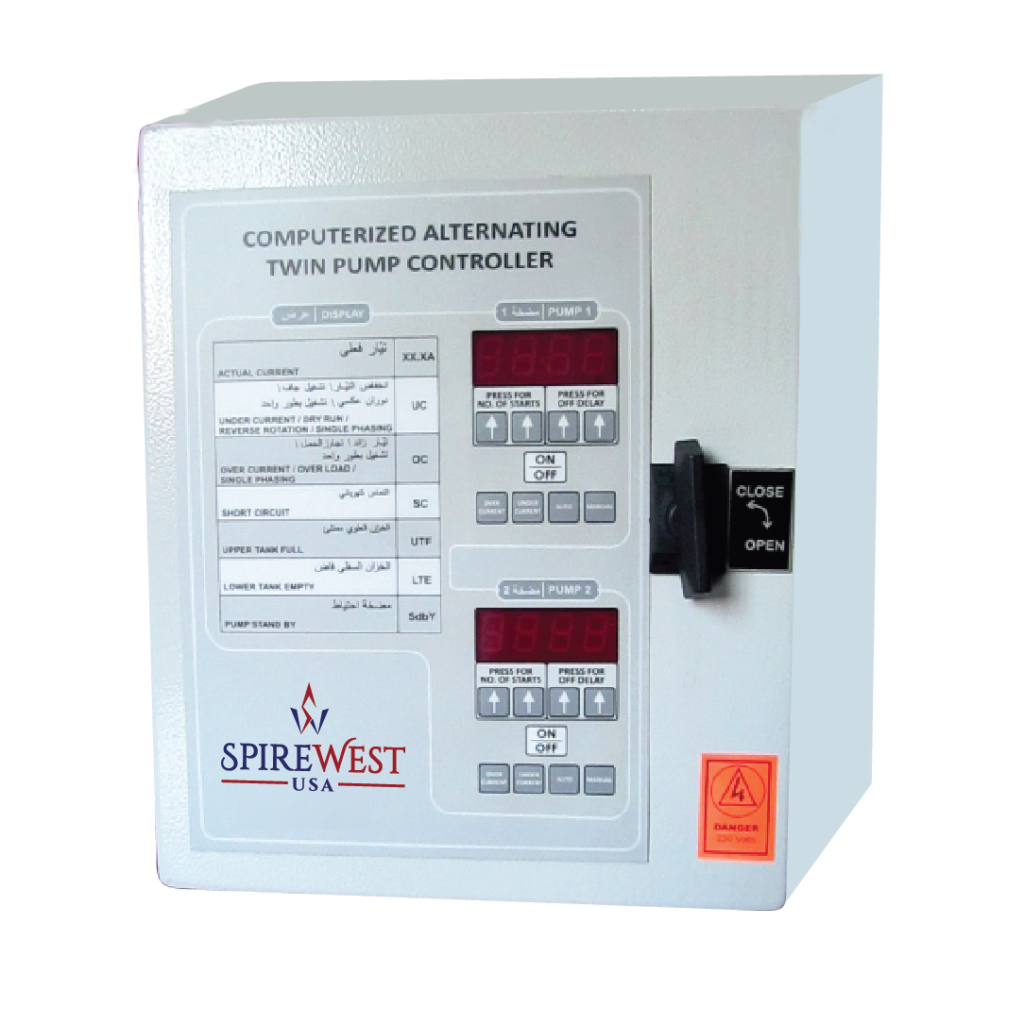

CONTROL PANELS FOR SEWAGE / DEWATERING SYSTEM
PRODUCT DETAILS
System to control multiple levels of sewage / storm water for single pump, multiple pumps and alarm levels. The alarm levels are indicated by both audio and visual representation. As with other SpireWest systems, these controllers are very easy to install, use and maintain.
- Completely Automatic Operation
- Complete Protection of your Pump Motor
- Digital display of Faults as well as Parameter
- Four Level control of Liquid Levels
- Audio Visual Alarm for High Level Float as well as current based dry run protection
- Highly Accurate and Reliable
Supply Voltage:
For Single Phase Panels:
- 230 Volts 50 Hz (+/- 10%) optional arrangement for Saudi models
- 110 Volts 60 Hz (+/- 10%)
For Three Phase Panels:
- 415 Volts 50 Hz (+/- 10%) optional arrangement for Saudi models
- 220 Volts 60 Hz (+/- 10%)
Power Range:
For Single Phase Panels: Up to 2kW each pump
For Three Phase Panels: Up to 5kW each pump
For Three Phase Panels: Up to 5kW each pump
Current Range:
0 – 20Amp (Same for each pump)
Control Voltage:
- 5 Volt DC
- 12 Volt DC for Relay Operation
Enclosure: IP 66 Powder Coated MS Enclosure
Bunglows, Villa, Building
- CE Certified
- UL Certified
